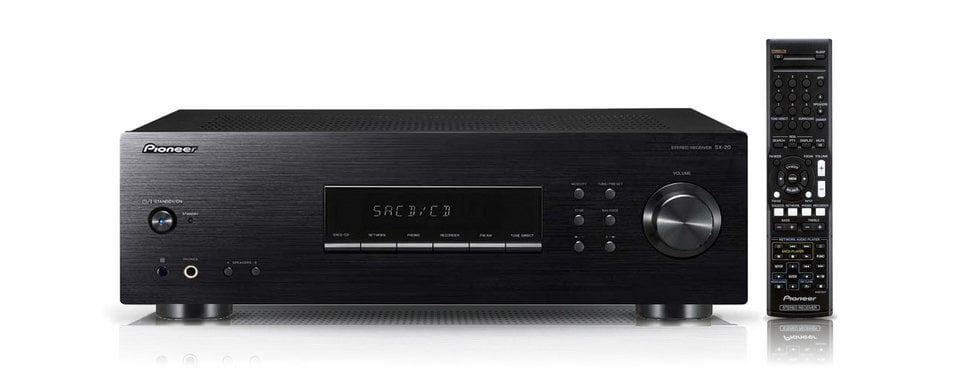

SX-20 Radyolu Stereo Amfi

Turn your radio station into an audio powerhouse.

With an immense power output of 100 W per channel, the SX-20-K stereo receiver is built to provide massive sound.

You can hook the stereo receiver to a Super Audio player, a network audio player, a recorder, and even to a turntable via the Phono MM terminal.

Completely power-driven, the SX-20-K includes large A/B speaker terminals to support two pairs of speakers. Each pair can be set up separately (A / B) or simultaneously (A + B). Bi-wiring is also supported for the optimum clarity in sound quality.

Main Features

Output Power per Channel: 100 W + 100 W

Impedance at Output Level

4-16 Ω (A / B)


8-16 Ω (A + B)


4-16 Ω (Bi-Wire)

Number of Channels: 2

Input Connections

SACD/CD


Network


Recorder


PHONO (MM)


Output Connections: Recorder


Input & Output connections

Headphone

Large speaker terminals

Phono Input

Pre-amp Output: (2.1 ch)

Speaker A/B

Audio Features

AM/FM Tuner with RDS

Tuner Pre-set Stations: 30 pre-sets

Power Output

Power output per channel: 100 W + 100 W

Condition: 20 Hz-20 kHz, 1% THD, 8Ω

Rated Power Output: 0.02 % THD, -3dB, 8Ω, 1kHz

Frequency Response: LINE etc.

Phono: 20 Hz-20 kHz, ±0.5 dB (RIAA Eqalisation) MM

Line (SACD/CD, Network, Recorder): 5 Hz-100 kHz, 0 dB/-3 dB

Signal-to-Noise Ratio: LINE etc. (DIN): Line (SACD/CD, Network, Recorder): 100 dB
Phono (MM): 80 dB
 dB

Power Requirements

AC 220 - 230 V / 50/60 Hz

Power Consumption (in use / standby): 210 W / 0.3 W

Auto Power Down

Construction

DesignAluminium Front Panel

Amplifier Specifications

Dimensions (W x H x D): 435 x 142.5 x 364 mm

Weight: 8.3 kg
