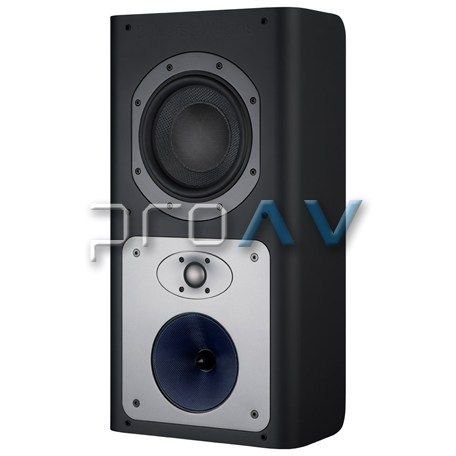

CT 8.4 LCRS
CT8.4 LCRS is designed as an alternative to the CT8 DS when space is at a premium.
CT8.4 LCRS is designed as an alternative to the CT8 DS when space is at a premium: it’s a smaller, more compact vertical surround sound speaker that generates a similarly 3D experience. It also packs enough power to act as a stand-alone loudspeaker when positioned front, side or rear.
|
Technical features |
Nautilus™ tube-loaded tweeter |
|
Description |
3-way closed-box system |
|
Drive units |
1x ø32mm (1.2 in) tube loaded aluminium dome
high-frequency |
|
Frequency range |
-6dB at 39Hz and 40kHz |
|
Frequency response |
49Hz – 24kHz ±3dB on reference axis |
|
Dispersion |
Within 2dB of reference response |
|
Sensitivity |
88dB spl (2.83V, 1m) |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) |
|
Nominal impedance |
8? (minimum 3.0?) |
|
Crossover frequency |
380Hz, 4kHz |
|
Recommended amplifier power |
50W – 200W into 8? on unclipped programme |
|
Max. recommended cable impedance |
0.1? |
|
Dimensions |
Height: 630mm (24.8 in) |
|
Net Weight |
21.0kg (46.3 lb) |
|
Finishes |
Cabinet Black painted |
