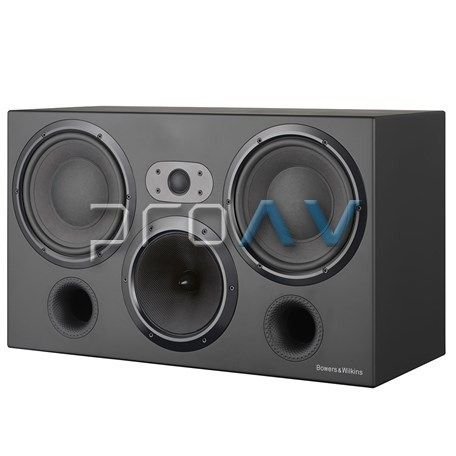

CT 7.3 LCRS
The top of the range 7.3 offers unparalled clarity combined with powerful low frequency effects thanks to a pair of whopping 8" paper/ Kevlar® bass units and a dedicated Kevlar® FST midrange.
The top of the range 7.3 offers unparalled clarity combined
with powerful low frequency effects thanks to a pair of whopping 8" paper/
Kevlar® bass units and a dedicated Kevlar® FSTTM midrange.
Designed to slot discreetly into custom-built cabinetry, every speaker in the
CT700 range can take on either front, centre or surround duties within a
multi-channel theatre set-up. Each speaker used Kevlar drive units, and
features B&W’s famous Nautilus tube-loaded tweeters – a pioneering
technology that draws away and dampens distorting sound waves from the rear of
the drive units, thereby producing a much purer sound from the front.
|
Technical features |
Nautilus™ tube loaded tweeter |
|
Description |
3-way vented-box system |
|
Drive units |
1 x ø25mm (1 in) cloth dome high-frequency |
|
Frequency range |
-6dB at 36Hz and 28kHz |
|
Frequency response |
42Hz – 22kHz ±3dB on reference axis |
|
Dispersion |
Within 2dB of reference response |
|
Sensitivity |
92dB spl (2.83V, 1m) |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) |
|
Crossover frequencies |
350Hz, 4kHz |
|
Recommended amplifier power |
50W – 200W into 8ohm on unclipped programme |
|
Max. recommended cable impedance |
0.1ohm |
|
Dimensions |
Height: 360mm (14.2 in) |
|
Net weight |
22.5kg (49.6lb) |
|
Finishes |
Cabinet Black painted |
