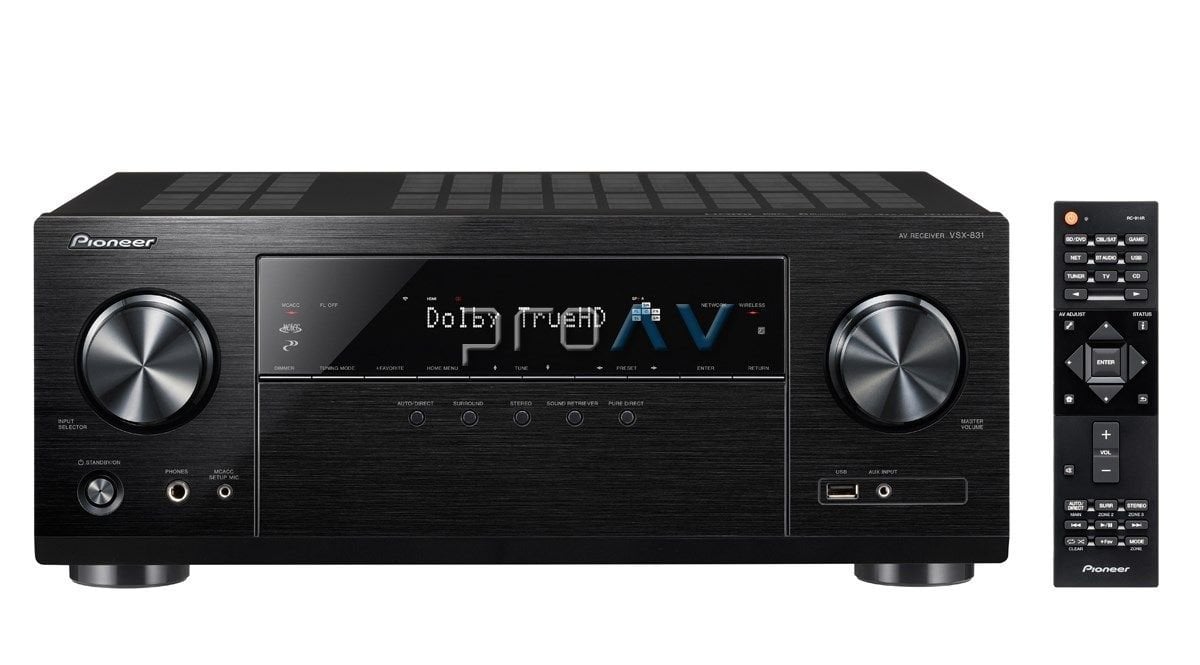

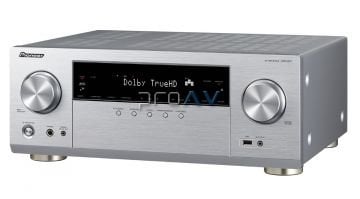

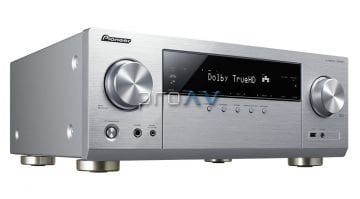

VSX 831 Ev Sinema Amfisi

The VSX-831 offers all the port and connection options that a modern and future-proof entertainment hub needs. Its 6 HDMI ports already accept image signals in the upcoming UHD standard as well as high-resolution audio in the Dolby TrueHD, dts ES Master and DSD formats. With built-in Wi-Fi and Bluetooth, the receiver does not have to match any modern streaming method: AirPlay, DLNA, Google Cast and FireConnect as well as the streaming services Spotify, Deezer and Tidal are synonymous with truly limitless musical enjoyment and listening pleasure.

With its six HDMI ports, the VSX-831 also has sufficient connection reserves for ambitious home theatres. Certainly not all playback devices will match the new UltraHD standard but might provide "only” normal FULL HD. For ease of use and the optimal use of suitable displays, the VSX-831 is therefore equipped with a quality video scaler which can convert full HD to 4K and also output the redesigned GUI user interface in this resolution. Sure, HD sound formats such as dts ES or Dolby TrueHD are also supported – the VSX-831 uses their potential through its new 32bit/384kHz DAC better still than previous models in this class.

Digital music delicacies are not only served over HDMI or S/PDIF, but also quite state of the art via network – either by cable or by built-in Dual Band Wi-Fi, and in DLNA streaming in full Studio Master resolution (DSD up to 5.6MHz, PCM up to 192/24). Even in the streaming services, quality defines all the signals. In addition to the popular Spotify Connect, the VSX-831 now also supports Deezer and Tidal, who offer subscriptions at full CD resolution.

On the other hand, whoever prefers to stream directly from their smart phone to the system can simply choose the option that works best at that point, with the compliments of AirPlay, Google Cast and not least the built-in Bluetooth receiver. Designed for maximum openness, nothing stands in the way of the VSX-831 providing listening pleasure.

(*) Deezer, Tidal, Google Cast and FireConnect are available after free firmware update in the summer of 2016. For the latest information on firmware updates, please visit our website or follow us on the social networks.

• Channels: 5
• Amplification Type: Direct Energy
• 130 W/ch (6 ohms, 1 kHz, THD 1.0 %, 1ch Driven)
• Dolby® TrueHD/Dolby Digital Plus/Dolby Pro Logic II
• DTS-HD Master Audio/DTS-HD High Resolution Audio/DTS 96/24/DTS-HD Express/DTS Neo:6 5.1
• DSD Playback via Network/USB (5.6 MHz/2ch 2.8 MHz/2ch)
• DSD Disc (SACD) Playback via HDMI (2.8 MHz/5.1ch, 2ch)
• Digital Core Engine with Cirrus Logic (Quad Core) x1
• 384 kHz/32-bit DAC (AK4458)
• HDMI Audio Return Channel (ARC)
• MCACC Auto Room Tuning
  - Phase Control
  - Subwoofer EQ (4 Band)
• Advanced Sound Retriever (2ch)
• Advanced Surround Modes
  - Classical, Unplugged, Entertainment Show, Drama, Advanced Game, Action, Rock/Pop, Sports, Extended Stereo, Extended Mono, Front Stage Surround, Auto Surround
• AM/FM Tuner 40 Presets

Video Features

• Ultra HD Pass-through with HDCP 2.2 (4K/60p/4:4:4/24-bit, 4K/24p/4:4:4/36-bit, 4K/60p/4:2:0/36-bit)
• HDR and BT.2020 Support
• Ultra HD Upscaling (1080p 4K)
• 3D Ready (Blu-ray Disc™, Broadcast, and Games)
• Deep Colour (36-bit), "x.v.Colour”

Network Features

• Built-in Wi-Fi® (Dual Band 5 GHz/2.4 GHz)
• Built-in Bluetooth® Wireless Technology (Version: 4.1, Profile: A2DP/AVRCP, Codec: SBC/AAC)
• Google Cast^*1*2
• Apple AirPlay Certified
• Spotify® Digital Music-Streaming Service Ready^*3
• Internet Radio with TuneIn
• TIDAL Music Streaming Service Ready^*2
• Deezer^*2*4
• Hi-Res Audio File Playback via USB/Network
  - Up to 192 kHz/24-bit ALAC, AIFF, FLAC, WAV
  - 5.6/2.8 MHz DSD Playback
  - Dolby® TrueHD Playback (USB only)

Operating Features

• iControlAV5 Remote Control App Ready (iOS/Android)^*5
• New GUI with System/Network Setup Menu
• Auto Power Off in HDMI Standby Through
• Sleep Timer
• User-Friendly Simple Remote Control

Connections

Front Terminals

• USB 1 In for USB Drive
• MCACC Setup MIC In
• Audio 1 In (Mini Stereo Jack)
• Phones 1 Out

Rear Terminals

• HDMI 6 In (4 Assignable)
• HDMI 1 Out
• Ethernet 1 In
• AV (Composite) 2 In (Assignable)
• Audio 2 In (Assignable)
• Phono (MM) 1 In
• Digital Coaxial 1 In (Assignable)
• Digital Optical 1 In (Assignable)
• Subwoofer 2 Pre Out
• Speaker 5 ch Out (FRONT, CENTER, SURROUND)
• FM/AM Antenna

Dimensions & Weight

• Dimensions (W x H x D): 435 x 173 x 370.5 mm
• Weight: 9.2 kg
