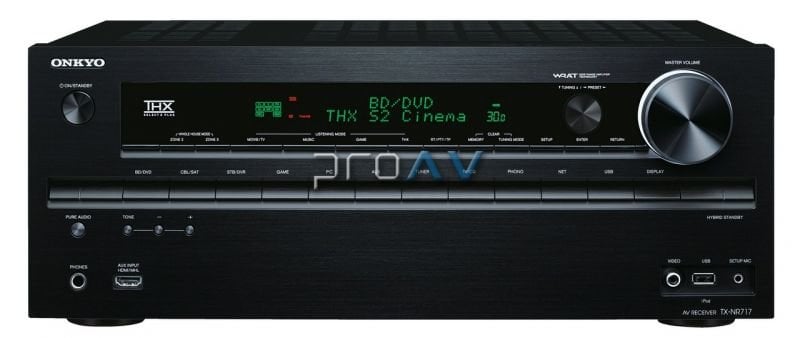

TX-NR717 7.2-Channel Network A/V Receiver

High Fidelity Entertainment for Your Whole Home
With the power to fill large rooms with THX®-certified sound, this cutting-edge receiver is ready to integrate and distribute
entertainment throughout your home. More than a home cinema processor, the TX-NR717 allows you to access music on PC, stream
from MP3tunes, explore online radio, or connect your iPod/iPhone to one of two USB ports. You can distribute any of these various
stereo sources to other rooms for house-wide entertainment. With a total of 10 HDMI® connections, this receiver converges HD
content from all your components—even your smart phone media via a frontside MHL/HDMI—and provides easy input selection with
InstaPrevue™ technology. HDMI also enables intuitive GUI with overlaid Quick Set-Up menu. Visually managing settings and playback—
even across multiple zones—is easy with the Onkyo Remote App for iPhone and Android phones. Video upscaling to 4K, Audyssey DSX®
seven-channel sound expansion, and Audyssey 2EQ® room correction are all included. Sound quality is quite simply the best in class, with
powerful WRAT amplifier, three-stage inverted Darlington circuitry, and discrete output stage components delivering an otherworldly
entertainment experience.

ADVANCED FEATURES
• THX® Select2 Plus™ Certified
• HDMI® Video Upscaling to 4K with Qdeo™
Technology by Marvell
• MHL (Mobile High-Definition Link) for Smart Phone
Content on HDTV
• Picture-in-Picture Input Source Preview with
InstaPrevue™ Technology
• Audyssey DSX® and Dolby® Pro Logic® IIz for
Expanded Surround Channels
• Internet Radio and Cloud Music Streaming Service
Connectivity (Last.fm, MP3tunes, Spotify, AUPEO!,
Simfy, vTuner)*1
• Supports Onkyo Remote Apps for iPod touch/
iPhone*2 and Android Phone*3
• PLL (Phase Locked Loop) Jitter-Cleaning Circuit
Technology
• Powered Zone 2/3 and Zone 2/3 Line-Outs for
Distributed Audio Playback in Multiple Rooms
• 7.2 Multichannel Pre-Outs
• Bi-Amping Capability
*1 Availability of services depends on region. Some services may require a
firmware update. *2 Compatible with iPod touch (3rd generation or later)
and iPhone 3GS or later. All models require iOS 4.2 or later. *3 Requires
Android OS 2.1 or later.
AMPLIFIER FEATURES
• 170 W/Ch
(6 Ω, 1 kHz, 1% THD, 1 Channel Driven, IEC);
185 W/Ch (6 Ω, 1 kHz, 1 Channel Driven, JEITA)
• WRAT (Wide Range Amplifier Technology)

• Three-Stage Inverted Darlington Circuitry
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Discrete Output Stage Circuitry
• Optimum Gain Volume Circuitry
PROCESSING FEATURES
• HDMI Support for 3D, Audio Return Channel,
DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD,
DTS-HD Master Audio™, DVD-Audio, Super Audio
CD, Multichannel PCM, and CEC
• TI Burr-Brown 192 kHz/24-Bit DACs for All
Channels
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action,
and RPG
• Advanced Music Optimizer for Compressed Digital
Music Files
• Theater-Dimensional Virtual Surround Function
• Direct Mode and Pure Audio Mode
CONNECTION FEATURES
• 8 HDMI Inputs (1 Front/7 Rear) and 2 Outputs
• 2 USB Ports (1 Front/1 Rear)
• Direct Digital Connection of iPod/iPhone via
Front-Panel USB Port
• Compatible with Optional UWF-1 Wireless LAN
Adapter via USB
• Playback of Audio Files Through Local Network
(MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis,
AAC, Apple Lossless, LPCM)

• 2 Component Video Inputs and 1 Output
• 5 Composite Video Inputs and 1 Output
• 5 Digital Audio Inputs (2 Optical and 3 Coaxial)
• 6 Analog Audio Inputs and 1 Phono Input
• Analog RGB Video Input (D-sub, 15 pin) for PC
• IR Input and 12 V Trigger Out (Zone 2)
• Color-Coded, Banana Plug-Compatible Speaker
Posts
OTHER FEATURES
• Audyssey 2EQ® for Room Acoustic Correction
• Audyssey Dynamic EQ® for Loudness Correction
• Audyssey Dynamic Volume® to Maintain Optimal
Listening Level and Dynamic Range
• Overlaid On-Screen Display (OSD) with Quick
Set-Up and Home Menu
• Hybrid Standby Function to Reduce Power
Consumption
• Independent Crossover Adjustment for Each Channel
(40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control (Up to 800 ms at 48 kHz)
• Tone Control (Bass/Treble) for Front L/R Channels
• Firmware Updates via Ethernet and USB
• Light Dimming (Display: Normal/Dim/Dimmer;
Volume Knob LED: On/Off)*
• RDS (PS/RT/PTY/TP) (European Model only)
• 40 FM/AM Random Presets
• Preprogrammed RI (Remote Interactive) Remote
Control
*Note: Volume knob LED is always off when display is dimmed.

Wireless Cloud Streaming, Internet Radio, and
PC-Based Music
Connecting to your home network using a standard LAN
cable, the TX-NR717 makes streaming audio and internet
radio easy. You can also play formats including MP3, AAC,
Apple Lossless, FLAC, and WMA Lossless stored on your
PC through your Onkyo home cinema system. The receiver
offers easy access to internet radio channels from Last.fm
and vTuner, plus cloud-based music streaming from AUPEO!,
Simfy, and MP3tunes*. Wireless networking is enabled with
an optional UWF-1 Wireless LAN Adapter.
*Availability of services depends on region. Some services may require a firmware
update.
Mobile High-Definition Link for Smart Phone
Movies and Photos on HDTV
The TX-NR717’s front-panel HDMI port is designed for the
connection of compatible smart phones and other portable
electronic devices using the new MHL standard. MHL allows
you to display full 1080p video and still images on your
HDTV with up to 7.1 channels of surround sound. Use the
receiver’s remote to control playback from your phone as it
receives a handy recharge.
InstaPrevue™ Technology Makes Switching
Sources Easy
The TX-NR717 incorporates InstaPrevue visual port
management technology, making input source selection
easier. InstaPrevue technology provides a live video thumbnail
of the available content on your devices connected via
HDMI. You no longer have to remember that your gaming
console is connected to Port 3, or your Blu-ray player to
Port 1, for example—you can see what’s playing and choose
accordingly.
THX® Select2 Plus™ Certified
THX Select2 Plus certification is specified for rooms where
the screen-to-seat viewing distance is three to four meters
and the room volume is around 56 cubic meters. To achieve
THX Select2 Plus certification, the TX-NR717 had to meet
the world’s most demanding standards for home cinema
audio quality and performance, and play at reference volume
levels with minimal distortion.
4K Video Upscaling and Processing via Qdeo™
Technology
The TX-NR717 offers full 4K (4096 x 2160) upscaling of
standard video sources such as 480i/p, 720p, and
1080i/p. Interlaced-to-progressive conversion and scaling
are performed by Qdeo video processing technology from
Marvell. Qdeo uses algorithms to erase video noise and
artifacts such as jaggies and feathering. Played back on a
compatible wide-screen display, your Blu-ray Discs and
DVDs will look more detailed and cinematic than ever.
Note: 4K video playback requires a 4K-compatible TV. HDMI pass-through of 4K
content from source devices is not supported. 4K upscaling of analog video is only
available at 480i.

Onkyo Remote Apps for iPod touch/iPhone and
Android Phone
The Onkyo Remote App 2 for iPod touch/iPhone*1 and
Onkyo Remote for Android phone*2 both provide an
intuitive way to operate Onkyo network A/V receivers.
Control input sources, adjust settings, and play audio stored
in a smart phone wirelessly (Android phone only) using the
application’s interactive graphical display. The two Remote
Apps are available separately as free downloads.
*1 Compatible with iPod touch (3rd generation or later) and iPhone 3GS or later. All
models require iOS 4.2 or later. *2 Requires Android OS 2.1 or later.
Entertain Your Friends and Family
The TX-NR717 can assign its Front High or Front Wide
channel outputs to power speakers in two other rooms
of your home. You can play music in the main room and
Zone 2—or, alternatively, Zone 3—at the same time, or play
a different audio source in either room. Use your stereo
amp to power one of the rooms and enjoy any audio
source from the receiver in all three zones simultaneously,
controllable with Onkyo Remote Apps for iPhone and
Android phone. Integrated house-wide entertainment is
now a reality.
Innovative Design Delivers Spectacular Sound
The TX-NR717 incorporates three-stage inverted
Darlington circuitry—an enhancement to Onkyo’s proven
WRAT (Wide Range Amplifier Technology)—and discrete
output stage components. The design ensures low negative
feedback for reduced distortion and improved handling of
speaker impedance fluctuations. Quality circuitry dovetails
with a heavy-duty power supply for instantaneous response
to signal gains. Furthermore, PLL (Phase Locked Loop)
jitter-cleaning technology enhances digital processing by
removing clock noise. The result is clear, effortless sound
under heavy loads.
Direct Digital iPod/iPhone Connection for Cleaner
Sound
The receiver’s front-panel USB port lets you play MP3, AAC,
and Apple Lossless stored on an iPod/iPhone, and MP3,
WMA, AAC, and FLAC audio files stored on a flash-memory
device using the system’s own remote for track selection
and playback. Your music will also sound much cleaner and
clearer, as the audio signal is transported in digital form
(rather than analog) via the direct digital connection.
Audyssey DSX® and Dolby® Pro Logic® IIz for
Three-Dimensional Surround Sound
The TX-NR717 incorporates surround sound technologies
from Audyssey and Dolby to offer you a choice of home
cinema setups. Audyssey DSX can expand 5.1 sources to
incorporate Wide or Height channels, while the Dolby
system adds Height channels. Dolby Pro Logic IIz can also
expand stereo sources such as music or TV programs.
A seven-channel setup provides a more realistic experience,
with the High or Wide channels carrying subtle directional
and ambient effects.
