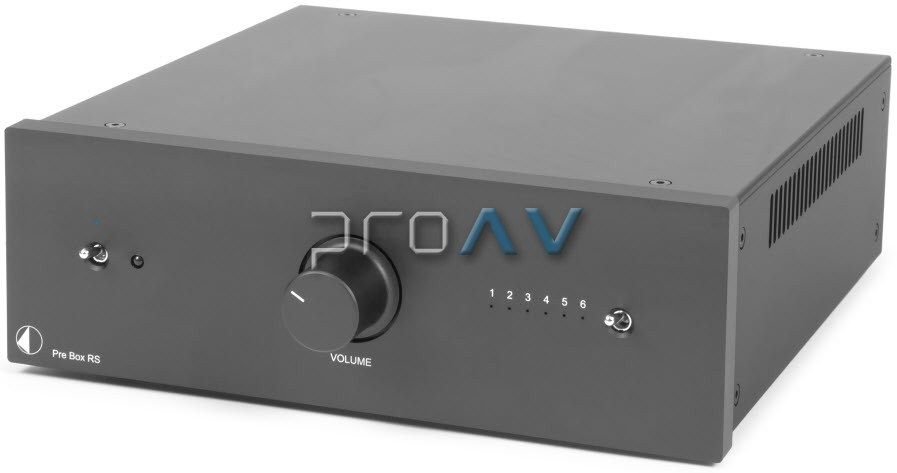

PRE BOX RS

PRE BOX RS

• Fully balanced double mono design

• Ultra-linear and ultra low noise

• Pure Class A circuitry

• Input switching via relais

• Low ESR capacitors

• Blue Alps volume control

• 3 XLR & 3 RCA inputs

• 1 Pre–out XLR & 1 Record-out RCA

• DC power supply (< 1 watt standby power)

• IR remote control included

• Metal casing protects against vibration and interference

• Available in black and silver

Ultimate high-end sound with 3 XLR & 3 RCA line inputs!

Four specific characteristics make this a true high-end preamplifier: 1. Fully balanced double mono design 2.class-A circuitry with no negative feedback 3. Tube output stage 4. Separate power supply as an upgrade option for further improved sound quality.

Pre Box RS offers 3-dimensional sound-staging, perfect micro dynamics and ultimate resolution combined with flexibility to use XLR and RCA sources. Perfectly combined with Pro-Ject Amp Box RS amplifiers, Pre Box RS will give pure sound experience, that the real audiophile is looking for. Pre Box RS utilises a luxury casing, that is available in silver or black finish.

Technical data

Pro-Ject Pre Box RS

Tube assenbly 2x ECC88 (6922 )

Frequency response 20Hz - 50kHz (+ 0/- 0,08 dB)

Signal to noise ratio -95dB (IEC -A)

THD 0,06%

Line-level inputs 3 pairs XLR & 3 pairs RCA/phono sockets

Input impedance 150kohms

Gain 18dB (XLR)

Outputs 1 Pre-Out (XLR), 1x Rec-Out (RCA)

Outboard power supply 18V/1A DC

suitable for your country's mains supply

Power consumption typical 700mA / < 1 watt standby

Dimensions W x H x D 206 x 72 x 200mm (210 with sockets)

Weight 1950g without power supply
