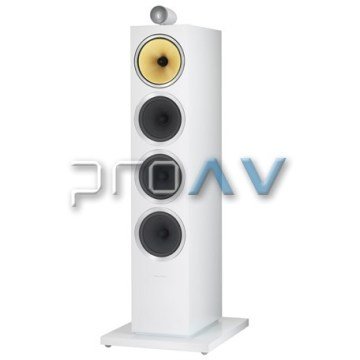

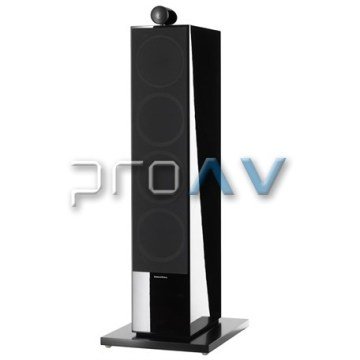

CM 10 S2 Kule Hoparlör
The flagship floorstanding speaker of the CM Series sets a new standard for performance. It combines technologies taken from across our ranges. The result simply sounds and looks beautiful.
The CM10 S2 was the first speaker to feature not only a
Tweeter On Top, but a Decoupled Double Dome Tweeter to boot. Given the stellar
performance these technologies deliver, the new CM10 S2 retains them for a
stunningly accurate high-end response.
While the Tweeter On Top remains, inside the CM10 S2 key changes mean this
already stunning sounding speaker sounds better than ever. A Mundorf EVO
capacitor delivers a simplified crossover, while Van den Hul internal wiring, a
Nickel-plated terminal tray and Anti Resonance Dust Plugs on the drivers mean
every major internal component has been improved.
It's not just internal improvements either. Outside, the CM10 S2 now, in
keeping with the rest of the CM Series, features minimalist fixings, a
redesigned protective speaker grille and a choice of three finishes that are
now available across the majority of the CM Series, including Rosenut real-wood
veneer.
|
Woven Kevlar |
|
|
Flowport |
|
|
Technical features |
Free-mounted Decoupled Double Dome aluminium tweeter |
|
Description |
3-way vented-box system |
|
Drive units |
1x ø25mm (1 in) Decoupled Double Dome aluminium
high-frequency |
|
Frequency range |
6dB at 28Hz and 50kHz |
|
Frequency response |
45Hz - 28kHz ±3dB |
|
Dispersion |
Within 2dB of reference response |
|
Sensitivity |
90dB spl (2.83V, 1m) |
|
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) |
|
Nominal impedance |
8Ω (minimum 3.1Ω) |
|
Crossover frequencies |
350Hz, 4kHz |
|
Recommended amplifier power |
30W - 300W into 8Ω on unclipped programme |
|
Max. recommended cable impedance |
0,1 Ω |
|
Dimensions |
Height: 990mm (39 in) cabinet only |
|
Net weight |
33.5kg (73.7 lb) |
|
Finishes |
|
|
Cabinet: |
Rosenut |
|
Grille: |
Black |
