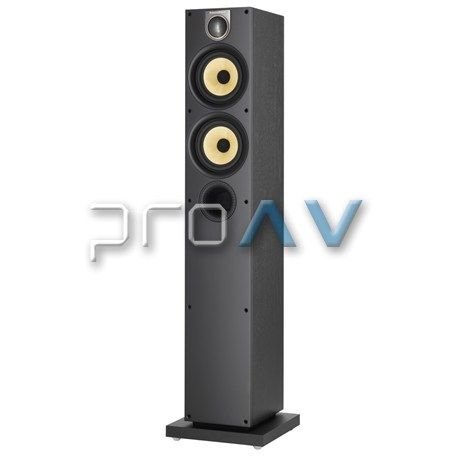

684 S2 Kule Hoparlör
Room-filling sound without a room-filling speaker cabinet. Slimmer than ever before, the 684 S2 offers an amazing combination of floorstander power, audio performance and unbeatable value.
Switching to 5-inch bass/midrange drivers from the previous
6.5-inch cones, means the 684 S2 is now significantly slimmer than its
predecessor, with simultaneously improved audio performance, thanks to Bowers
& Wilkins innovation. The two Kevlar cone drivers benefit from smaller
voice coils to increase sensitivity.
The 5-inch drivers now also feature Anti-Resonance Plug dustcaps, technology
taken from our high-end PM1 speakers, that improve pistonic movement inside the
voice coil. This helps to deliver amazingly distortion-free midrange
performance, all in a smaller space.
As well as slimmer, improved driver performance, the 684 S2 also features a
Decoupled Double Dome tweeter. Double dome technology, brought across from the
CM10, increases tweeter rigidity for a more precise sound, while the tweeter
sits in a gel-filled cavity, decoupled from the surrounding cabinet - which
removes resonances and vibrations, for a more natural, spacious sound.
Woven Kevlar |
|
Crossover Tuning |
|
Nautilus Tapering Tube |
|
Flowport |
|
Technical features |
Decoupled Double Dome aluminium tweeter with Nautilus™
tube loading |
Description |
2-way vented-box system |
Drive units |
1x ø25mm (1 in) aluminium dome high-frequency |
Frequency range |
-6dB at 45Hz and 50kHz |
Frequency response |
72Hz - 22kHz ±3dB on reference axis |
Dispersion |
Within 2dB of reference response |
Sensitivity |
87dB spl (2.83V, 1m) |
Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m) |
Nominal impedance |
8Ω (minimum 3.5Ω) |
Crossover frequencies |
4kHz |
Recommended amplifier power |
25W - 150W into 8Ω on unclipped programme |
Max. recommended cable impedance |
0.1Ω |
Dimensions |
Height: 920mm (36.2 in) cabinet only |
Net weight |
14.2kg (31.2 lb) |
Finishes |
Black Ash |
